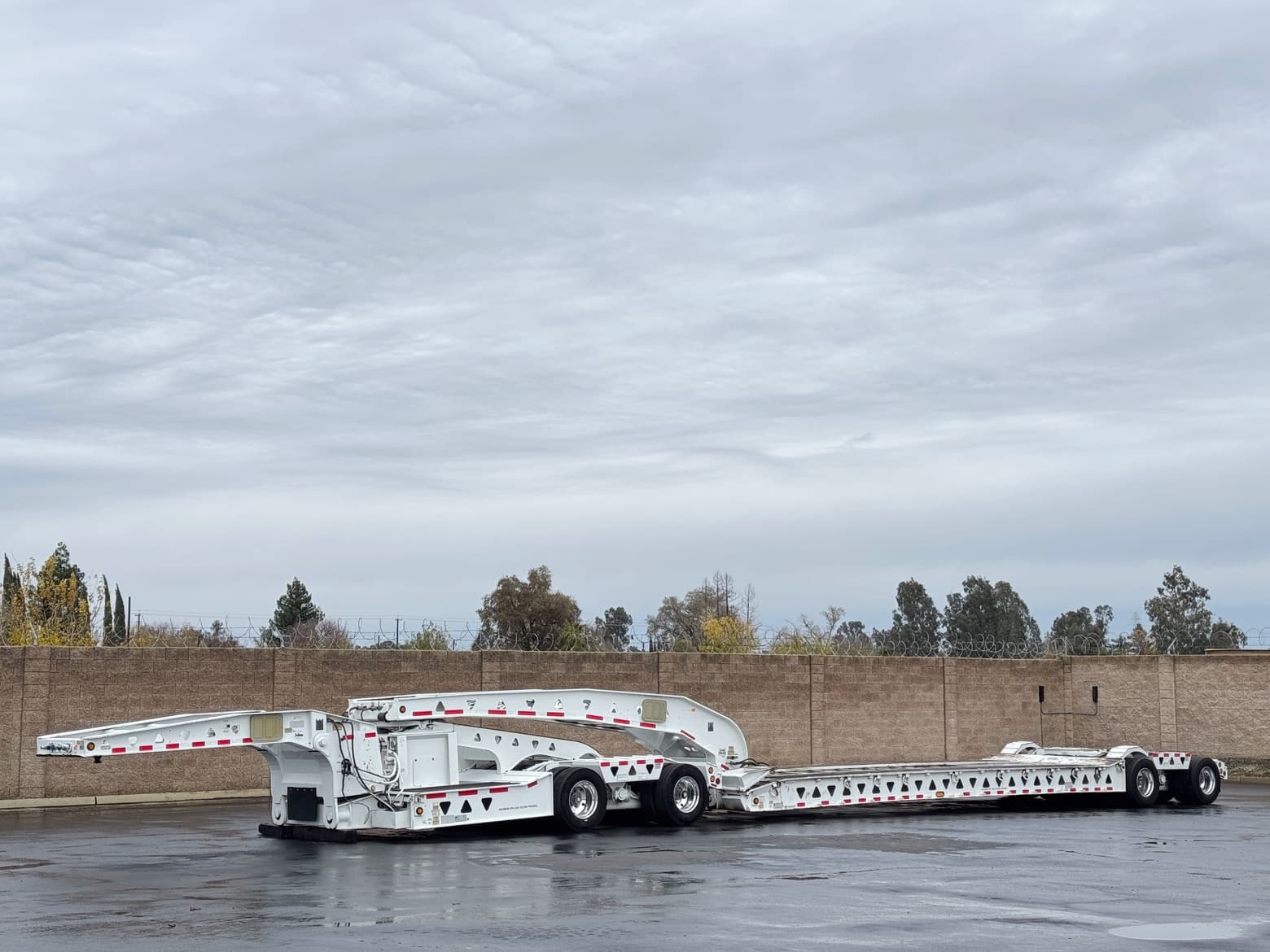

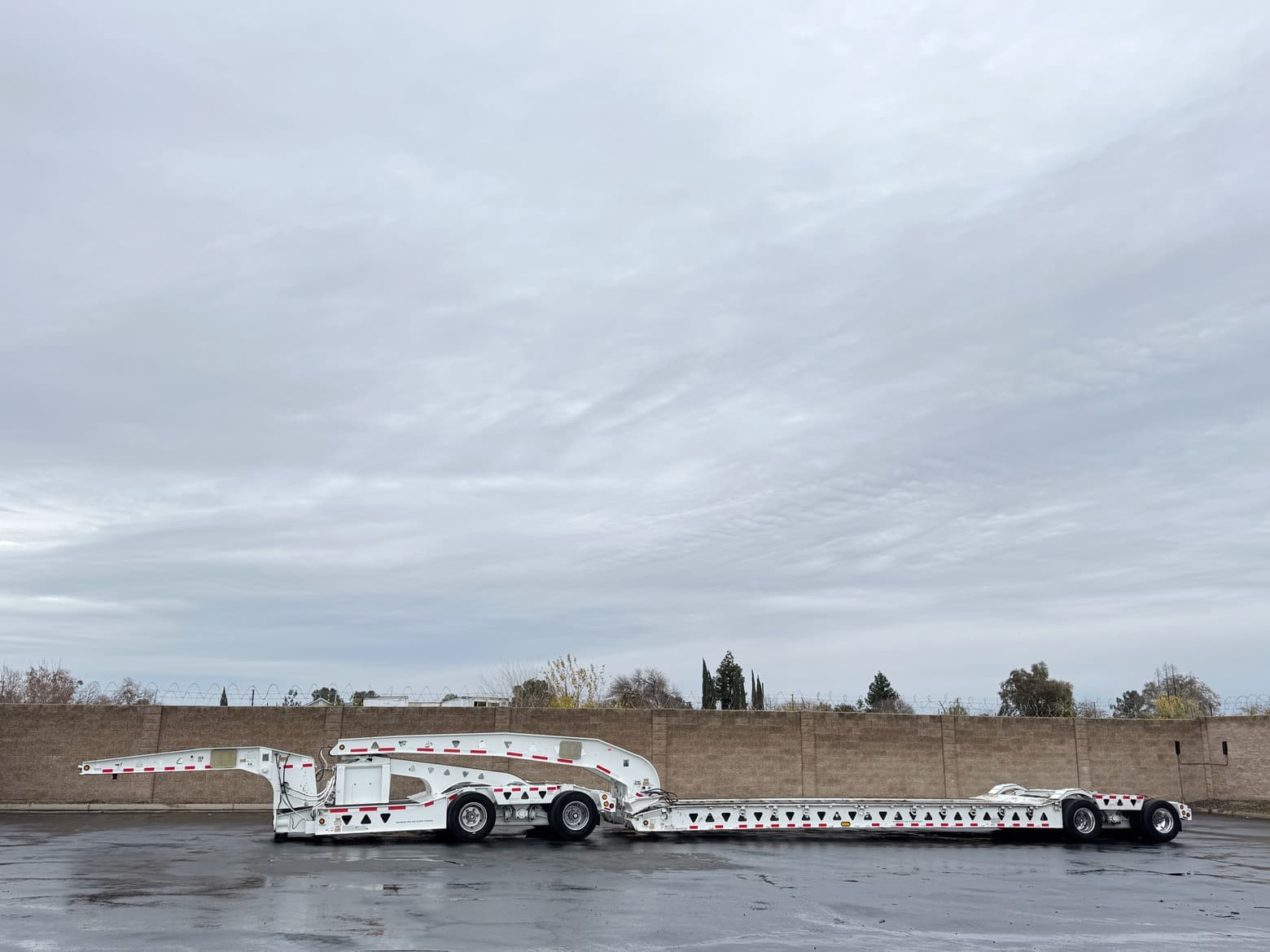

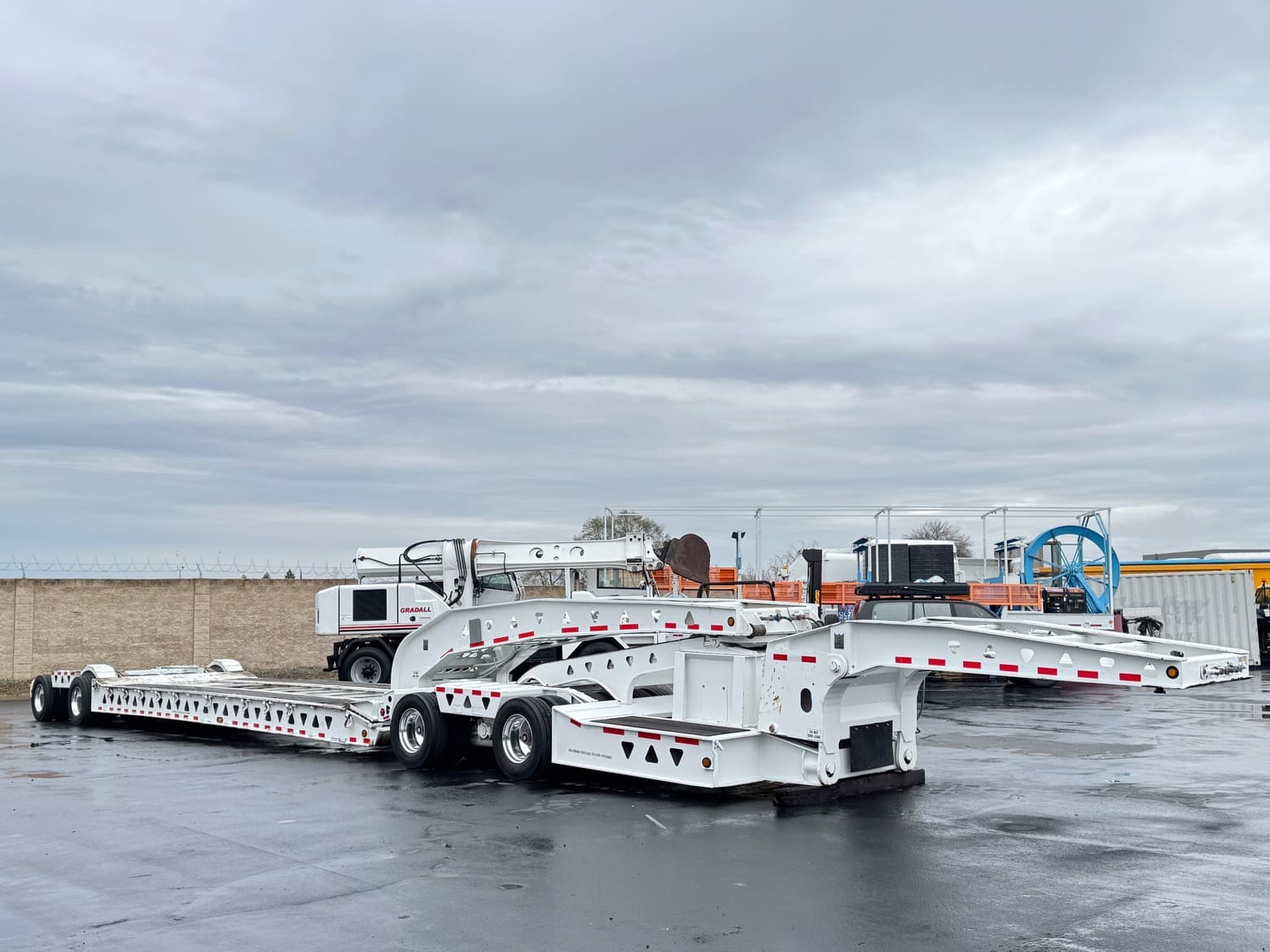

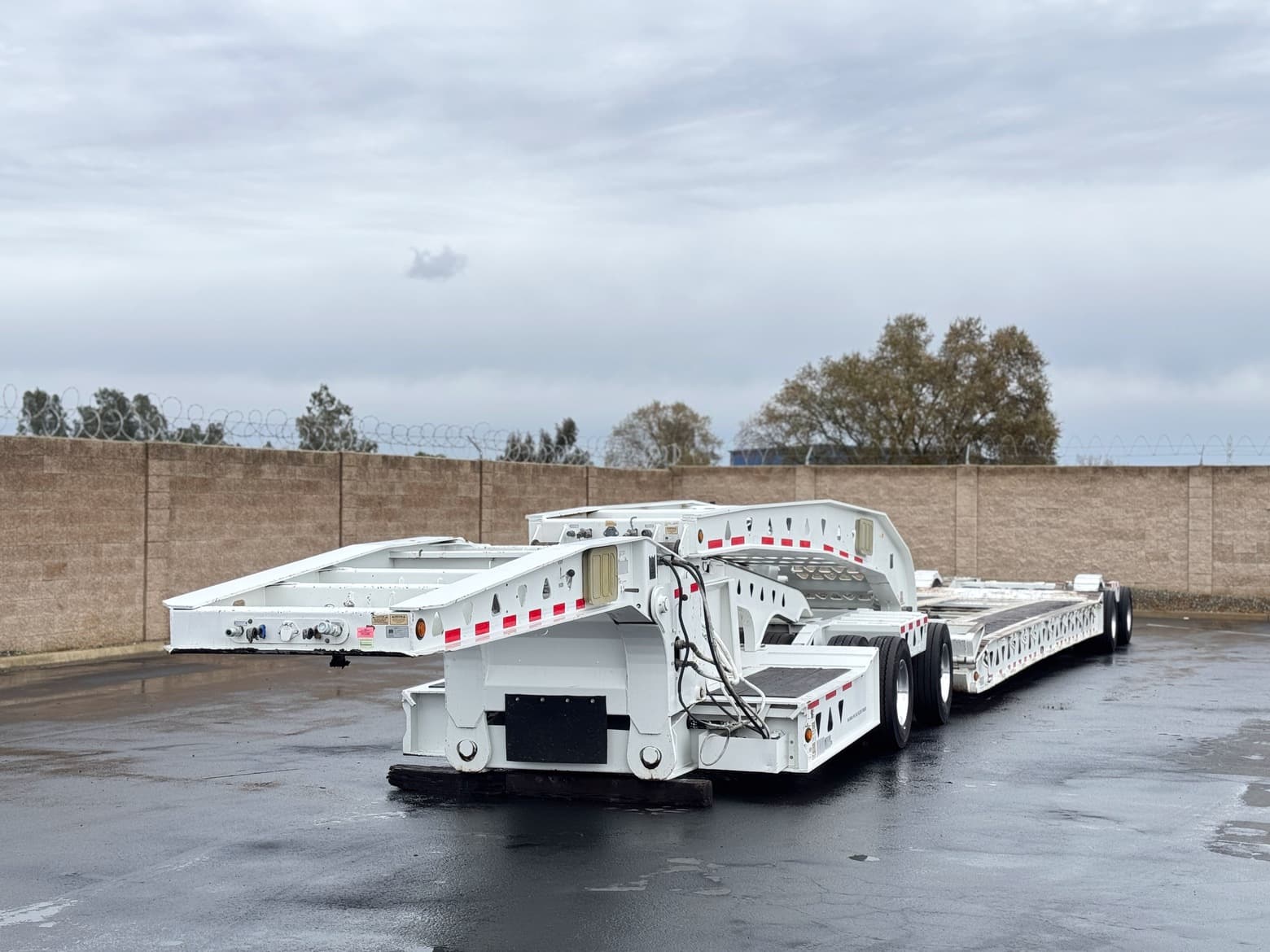

Ex-City 16-Tire Trailer & 16-Tire Jeep Expandable 7-Axle Combination Trailer, Very Low Use Ex-City Unit!

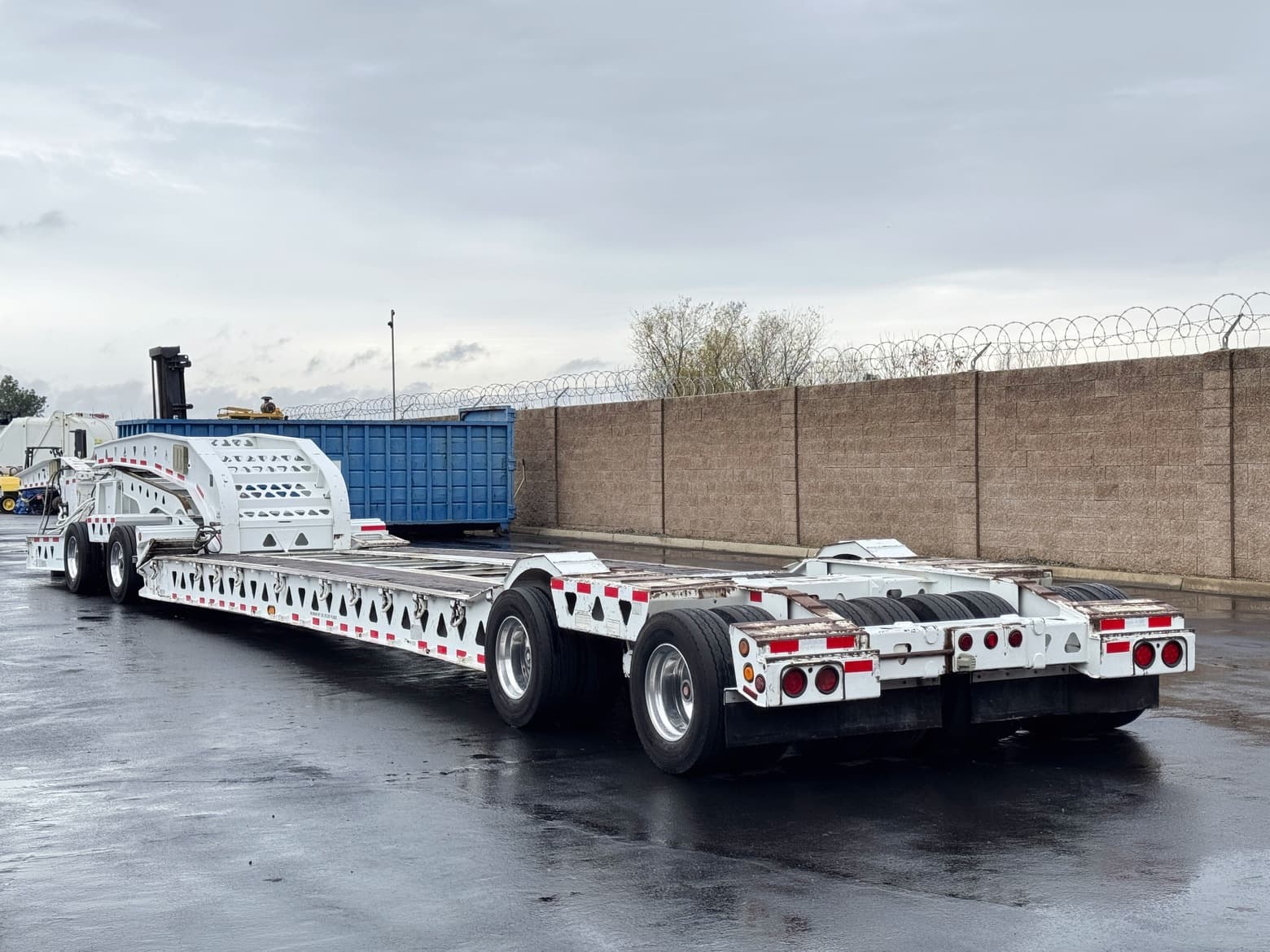

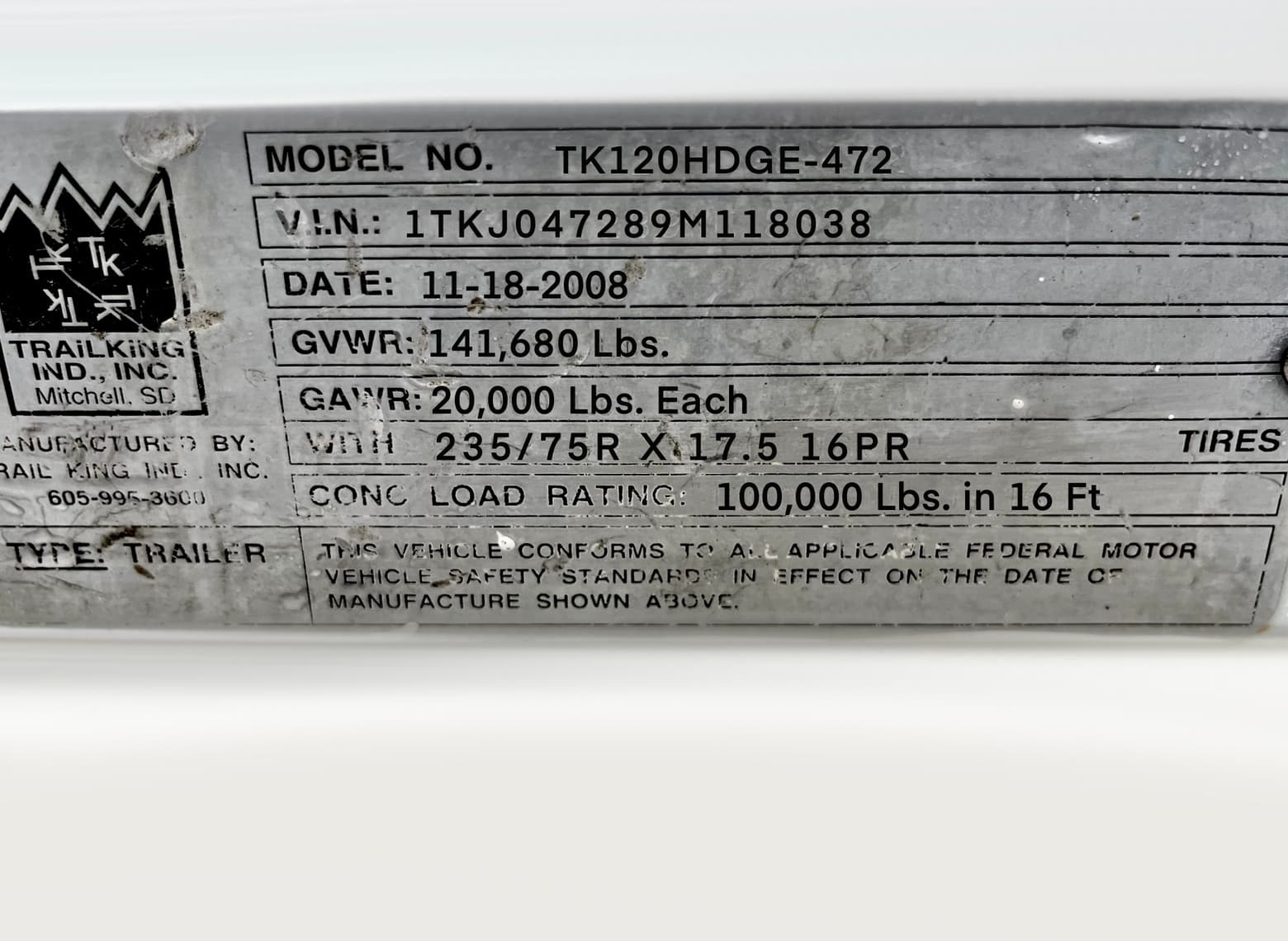

Trail King Trailer: Trail King TK120HD6E, 102" Deck Width, 46' 11" Overall Length, (100,000 lbs. Concentrated in 16'), 24' Deck Length, Hydraulic Length: 12' w/16" Pin & 98" Swing Cl., 16" King Pin Setting, 2 Additional King Pins (24" & 40"), Hinged Lockable Chain Storage Rack in GN Riser
GVWR: 141,680 lbs
Deck Style: 24" Loaded Deck Height, 8" Ground Clearance
Deck Material: Raised Deck Material, Apiton 1 - 3/4" Net Thickness, Outrigger Plank in Center, Additional Stub X-Members in Outer Bays for X-Members 12" O.C.
Outrigger Options: H.D. Swingouts, Double Wide Outriggers at Front with Dual Outriggers in Center
Tie Downs: Additional D-Rings (Bent Style D-Rings approx 24" O.C.), Triangle Cutouts ILO D-Rings, Vertical Recessed D-Rings 48" O.C. Max.
Loading Ramps: 31" Front Loading Ramps (Steel with Traction Aids)

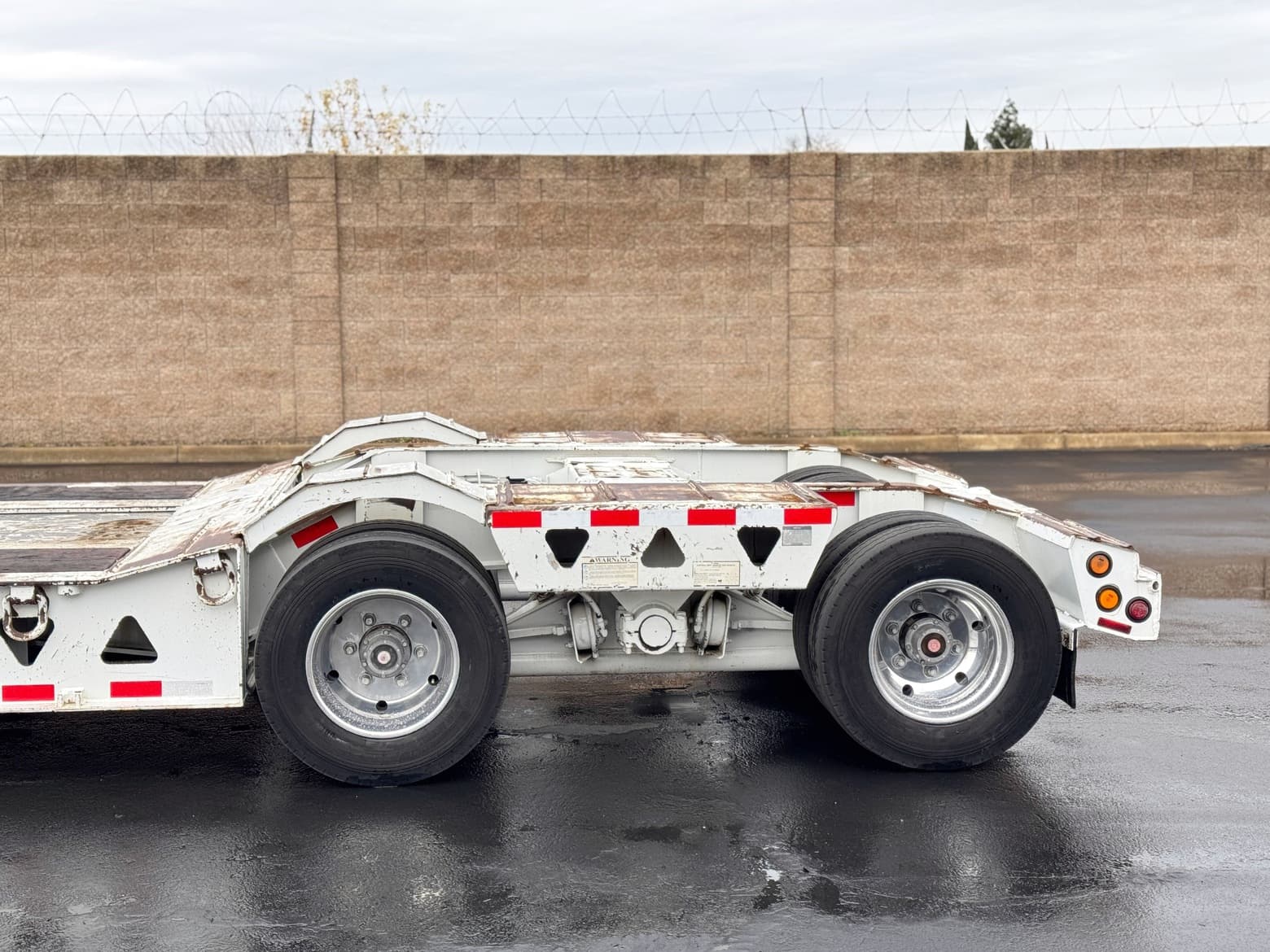

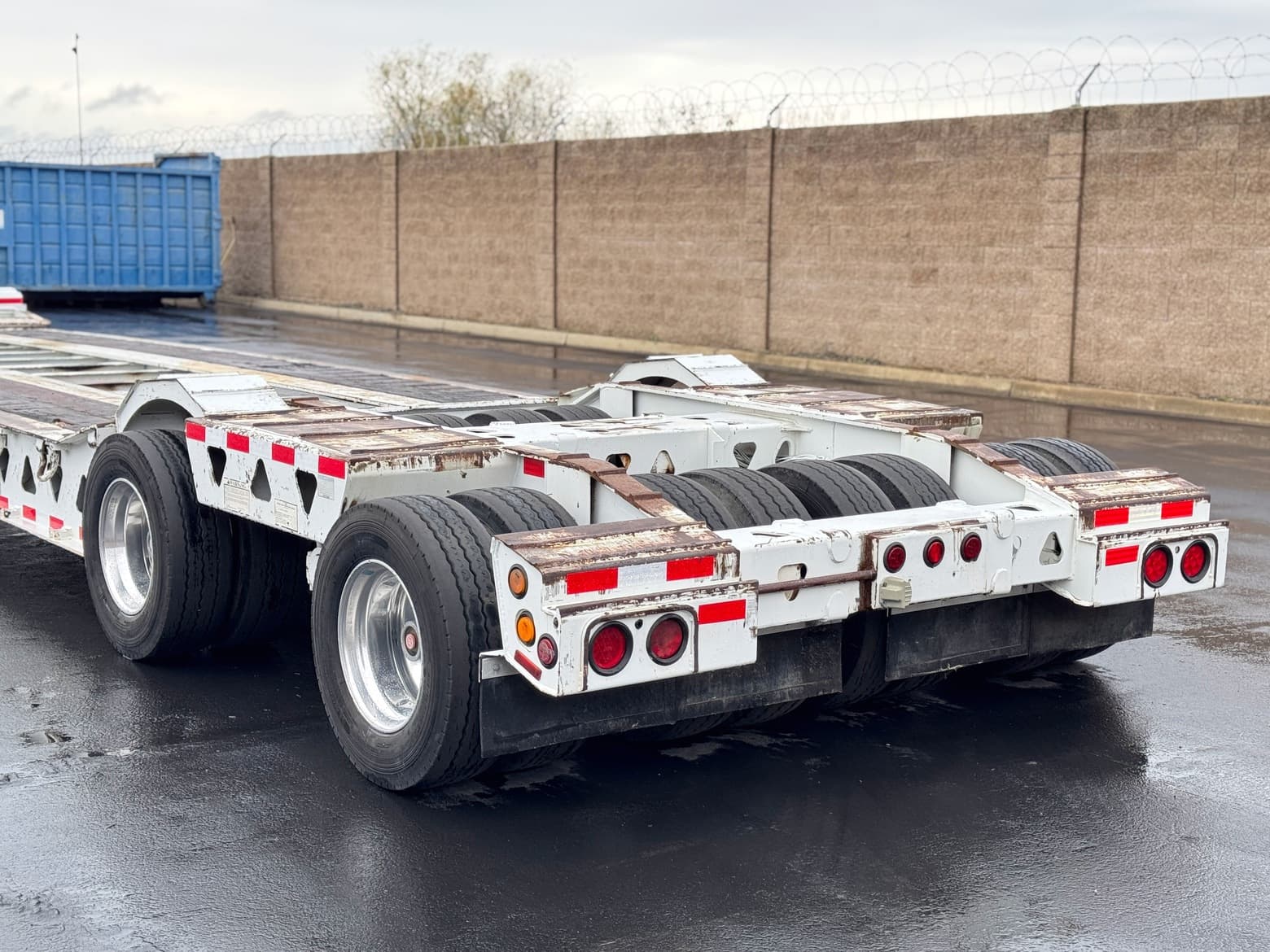

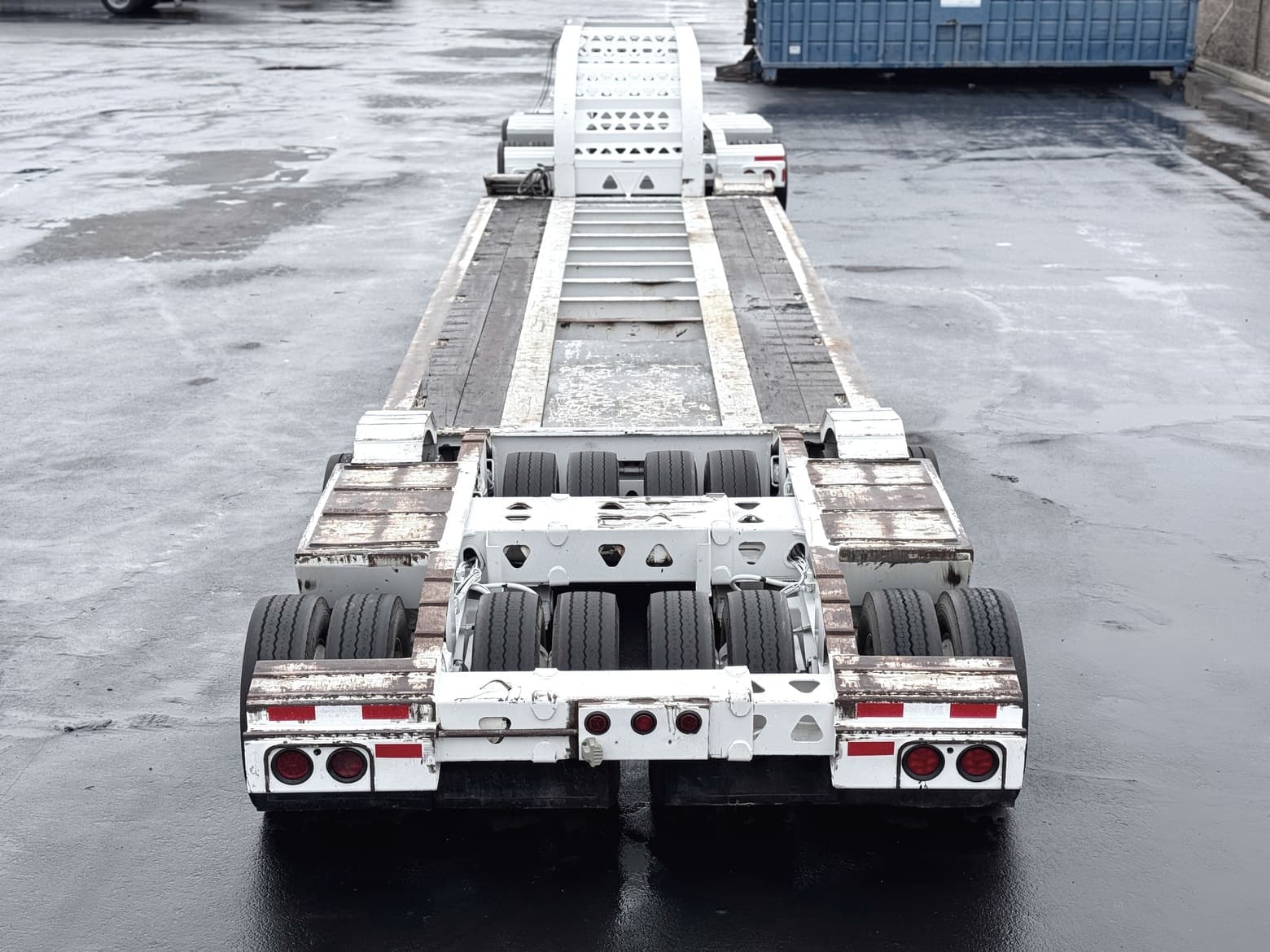

Wheel Area: 30" Beavertail at Rear, Expando Ramps at Rear, 16 Whee; Trunnion, 16 Wheel Expando
Air Ride Suspension: Make: TK Walking Beam, Model: Trunnion Expando
Axles: 20,000 lbs, 4 Fixed Axles, 69" Axle Spacing, 452 Anti-lock Brake System

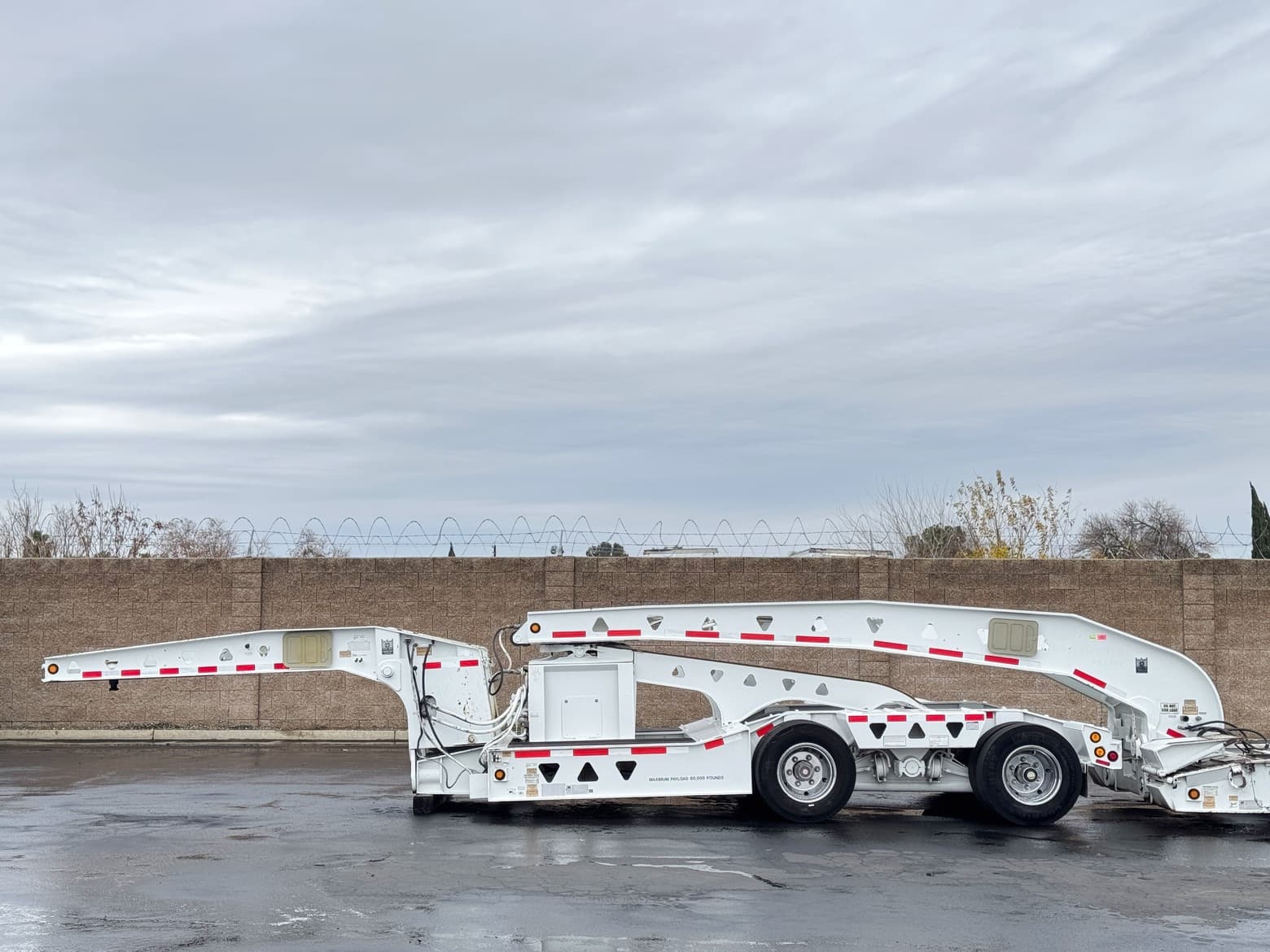

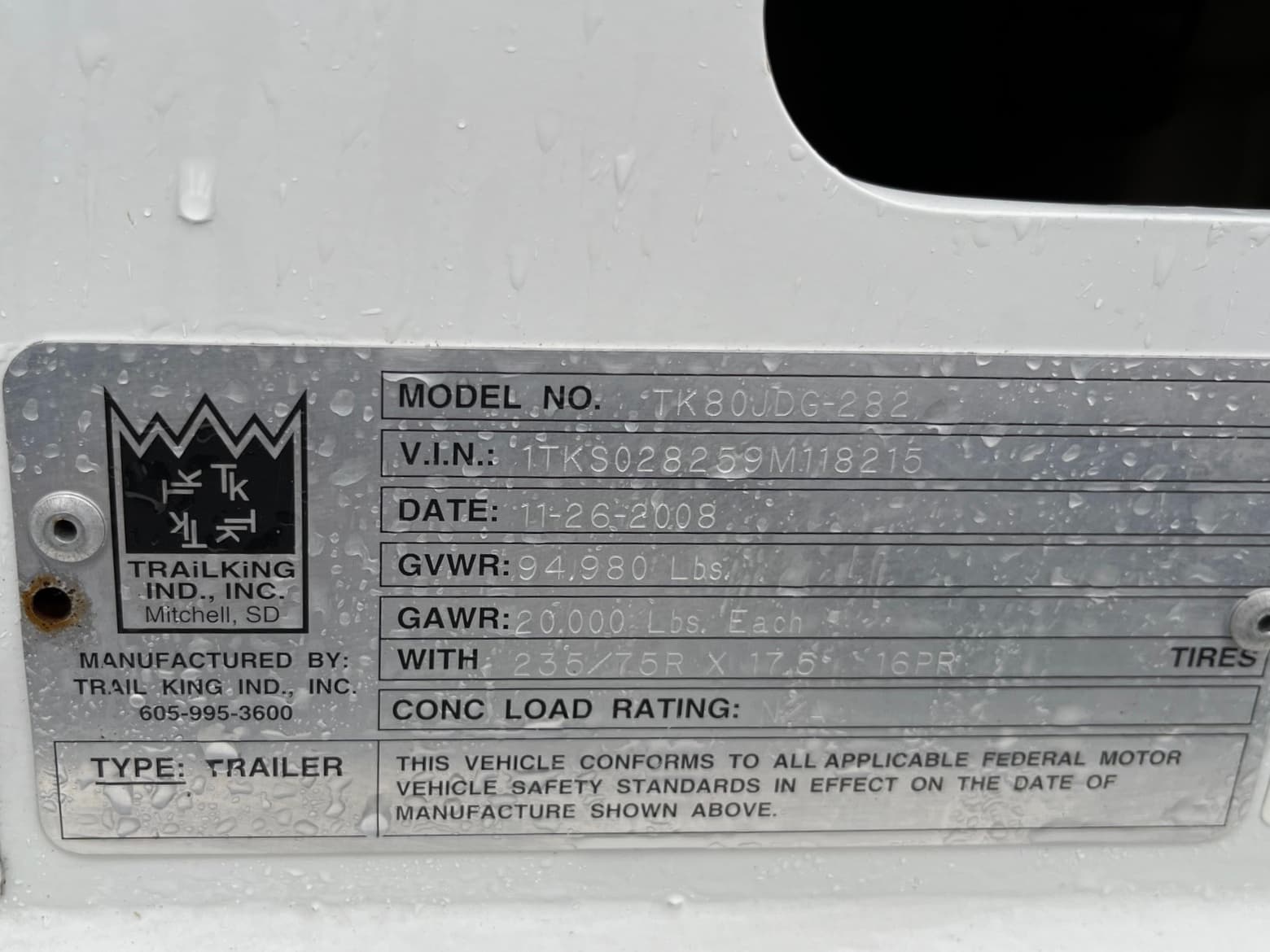

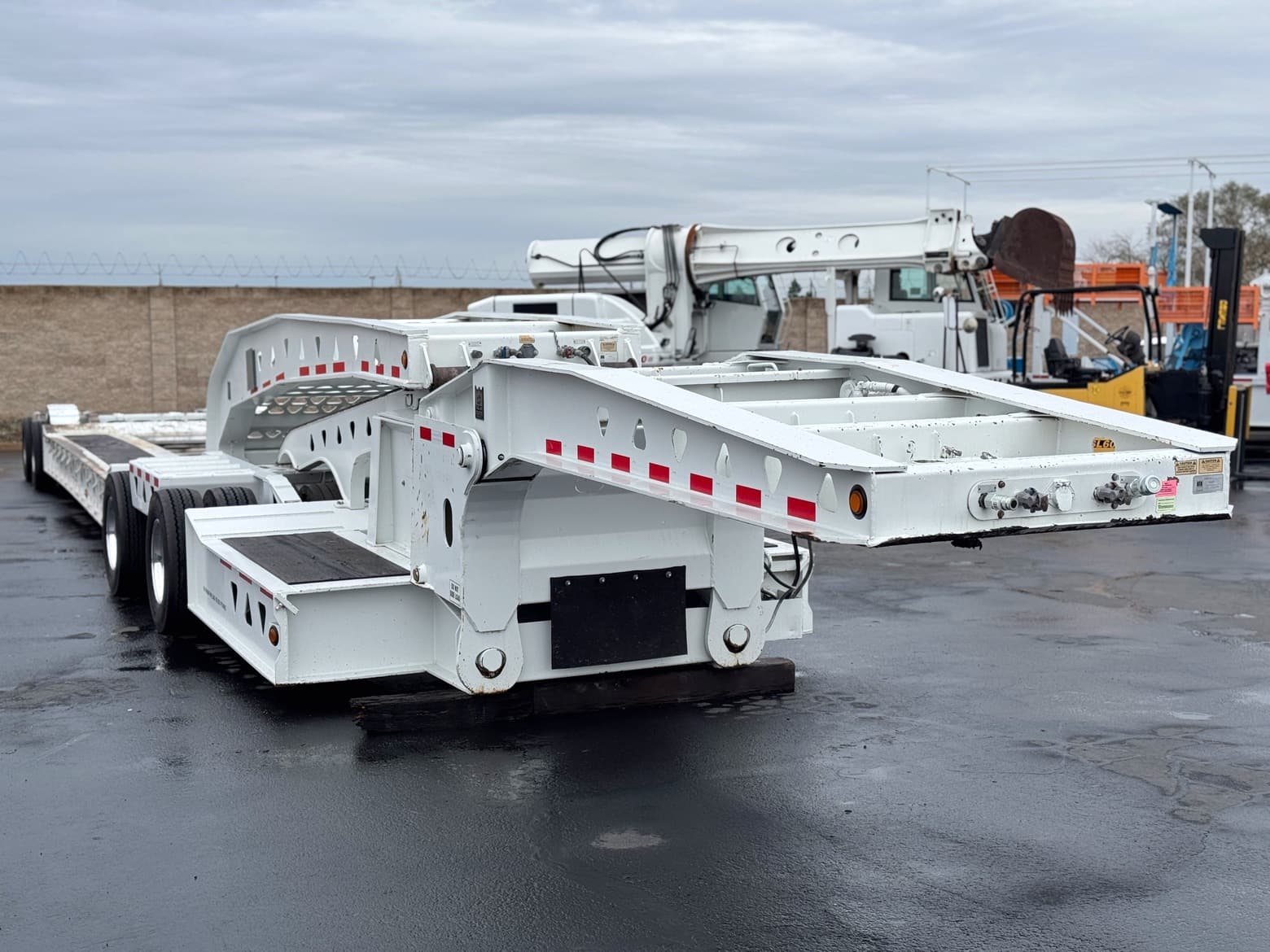

Trail King Jeep: Model: TK80JDG, 102" Deck Width, 28'3" Overall Length, 80,000 lbs Capacity Overall
GVWR: 94,980 lbs, Tare: 14,980 lbs
Upper Deck Length: 18'7" Mech Det. GN w/ 16" KP+ 173" of Wing

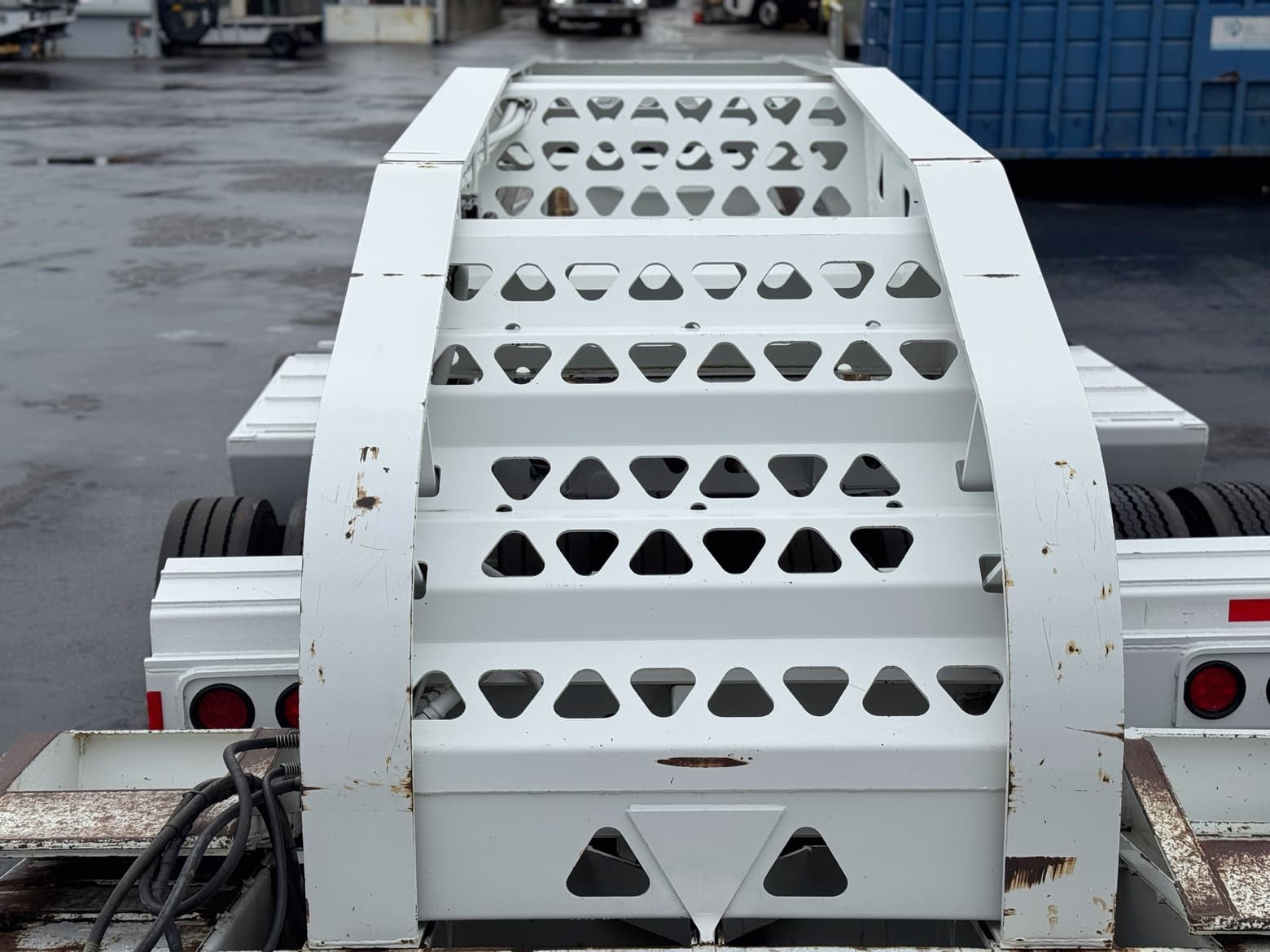

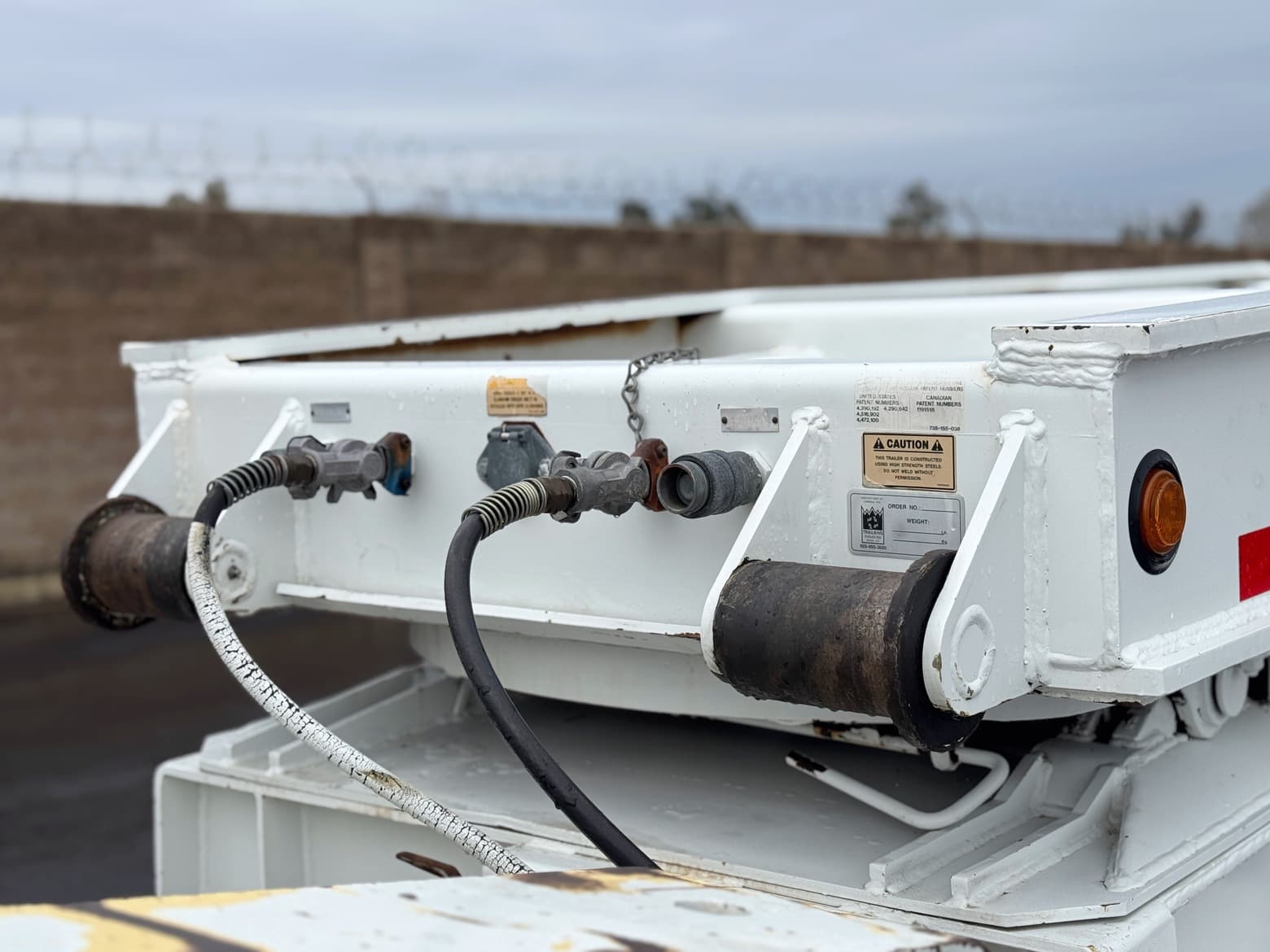

General Specs: Special 5th Wheel Specify: 16" Hyd Hat Box Removable Tower and Ramps Set up for Scraper Basket
Suspension: TK Walking Beam Expando

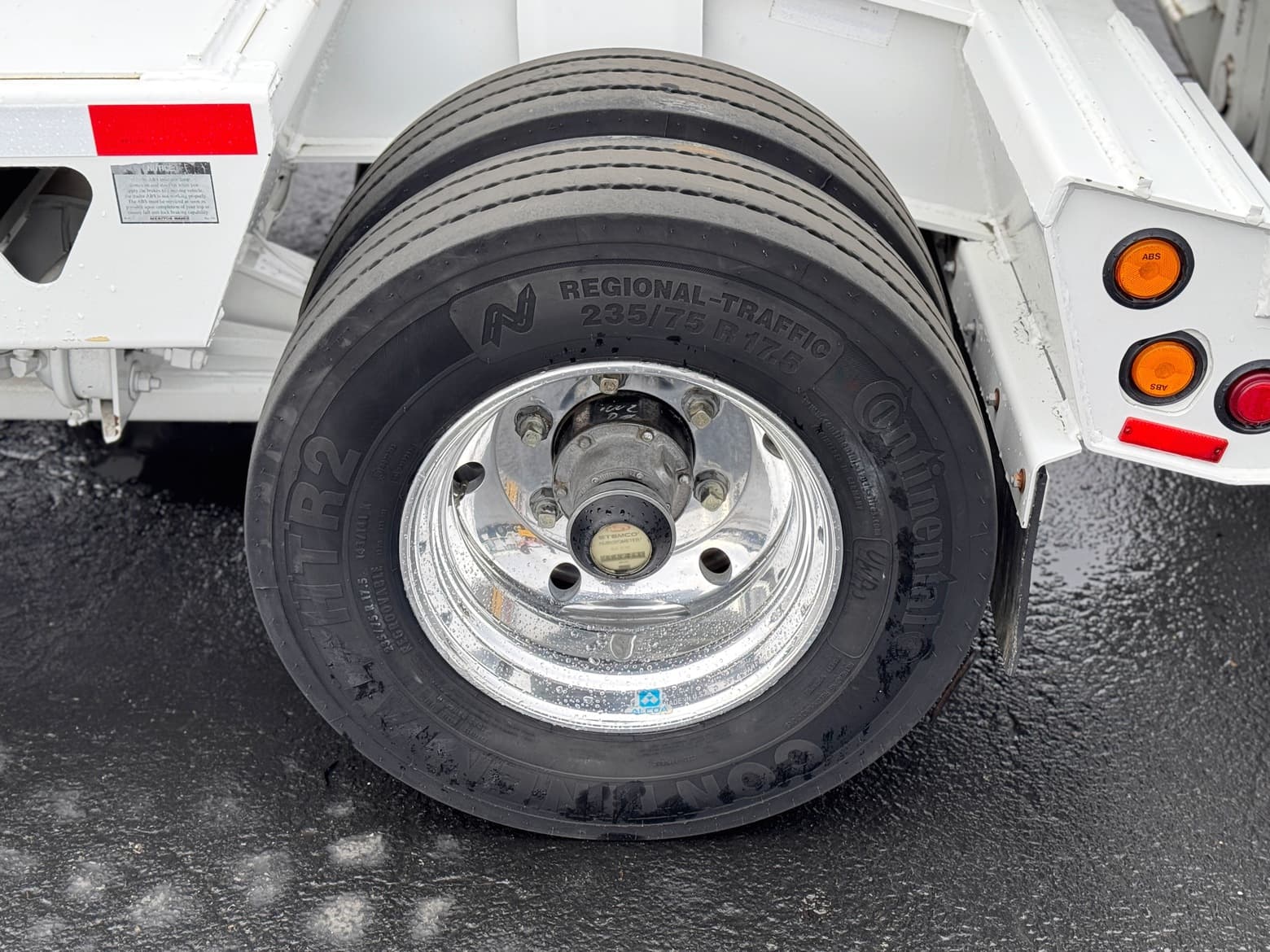

Axles: 20,000 lbs. Capacity, 4 Fixed Axles on Base Unit, 69" Axle Spacing on Base Trailer, Std. Brake Size (Auto Slacks)
Anti-Lock Brake System: 4S2M
| Stock # | 15214 |
| Year | 2009 |
| Make | Trail King |
| Model | TK120HD6E & TK80JDG |
| Color | White |
| Odometer Reading | 0 mi |
| Hour Reading | 0 |
| Fuel Type | None |
